Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine

Brand Name : MRBEST

Model Number : MR-DG300

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500 sets per month

Delivery Time : 7-20 working days

Packaging Details : Standard Export Wooden Packing

Product Name : Battery Calendering Machine

Roller Diameter : φ200mm

Roller Width : 330mm

Pressing Speed : Max 6m/min

Installation Size : L2500 X W1500 X H1300mm

Weight : 600kg

Contact Now

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine

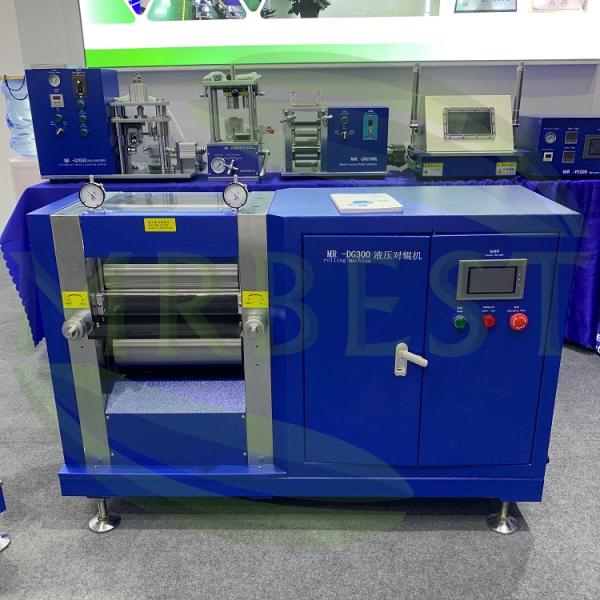

Battery Calendering Machine for Lithium Battery Assembly


Model: MR-DG300

Battery Calendering Machine is a hydraulic roller press machine, which is used for battery electrode rolling press process for Lithium Battery Assembly. Winding&unwinding device is optional.

Main Features:

• The pressing thickness is adjustable.

• It is designed with tension control.

• Winding & unwinding device with correction function.

• Touch screen control, high automation.

Specifications:

Model Battery Calendering Machine MR-DG300
Pressing pressure Max 25T, customized pressure is available
Pressing speed Max 6m/min
Roller diameter φ200mm
Roller material 9Cr3Mo
Roller surface hardness ＞HRC65
Roller width 330mm
Pressing thickness Max 2mm
Pressing accuracy ±1.5μm
Power supply AC220V
Power 3KW
Installation size

L2500 x W1500 x H1300mm

( Roll press machine + winding & unwinding device )
Compressed air 0.5~0.8Mpa
Weight ≈ 600kg

Picture for Reference

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine

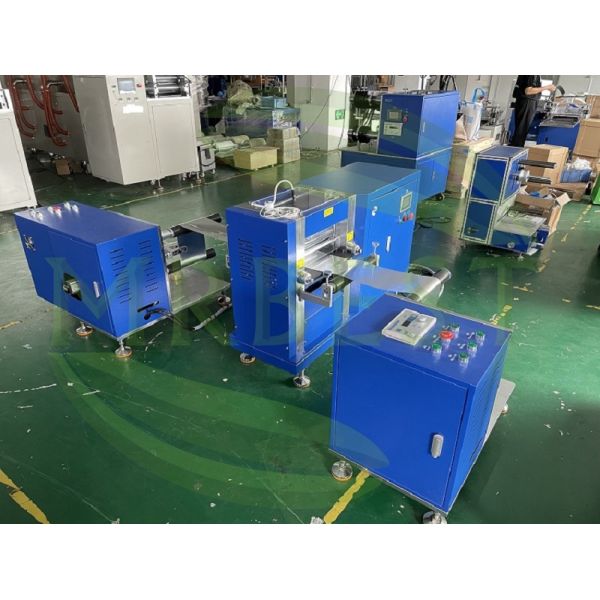

Optionla Pressure Controlled Rolling Press Machine with Winding and Unwinding Device

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine

Pouch Cell Assembly Machines

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine
Cylindrical Cell Machine
Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine
Coin Cell Machines
Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine

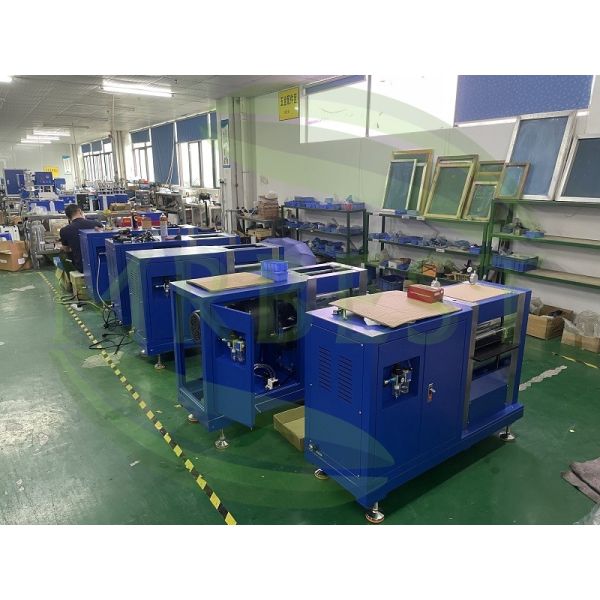

MRBEST Factory Show

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine

Shenzhen Meirui Zhida Technology Co., Ltd
Manufacturer Vendor for Lithium Battery Equipment in Shenzhen China
MRBEST Engineers has over 20 years experience in Lithium-ion Battery Researching and Manufacturing!
MRBEST International Sales Team has over 10 years export experience
24*7 Online after-sale dept and quick response!
Provide complete solution for Battery & Material Research Equipment
MRBEST Factory with ISO Certificate and products are CE approved
